 The Shasta

 Main: 1028 sq. ft.

 Loft: 472 sq. ft. (over 6' headroom)

 Total = 1500 square feet

The Shasta

Click image to view other elevations and floor plans

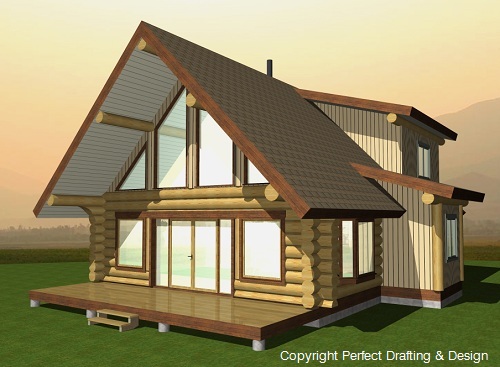

The Shasta features a large front overhang with raker style windows in the gable end to allow for a lot of natural light.

The main floor has 1 bedroom, and considering the compact footprint (just over 1000 square feet) boasts a large combined vaulted Living room/Dining area. The kitchen is "tucked away" in a more traditional sense (not a full open concept that is highly popular today) but is still more then large enough to accommodate the chef in your family and has room for a small breakfast bar or table under the bay window.

The upper level in this design houses 2 more bedrooms and an open loft area.

Click this image to view a .pdf file of the elevations and floor plans. They are set up to print on a 8 1/2" x 11" paper.

Pricing:

$1500.00 CDN - Includes 5 sets of the Standard Construction Set (see rates and services for details), free shipping, and 4 hours of revisions to the plans.

An upgrade to a Complete Construction Set may be be added on at time of order for an additional $.25 per square foot (Main and Upper living space, if applicable)

Extra prints and/or shipments may also be added on. Cost determined by quantity of prints and shipments.

As with all stock plans, you can make as many changes as you want/need. However, 4 hours of changes are included in the package price. Additional hours are charged at the current hourly rate (see rates and services for details). An estimate of the time required and extra cost will be provided.

Click here to e-mail your order request

Please include your contact information and the plan name you are interested in with your request.
