 The Navajo

 Main: 1850 sq. ft.

 Loft: 950 sq. ft.

 Total = 2800 square feet

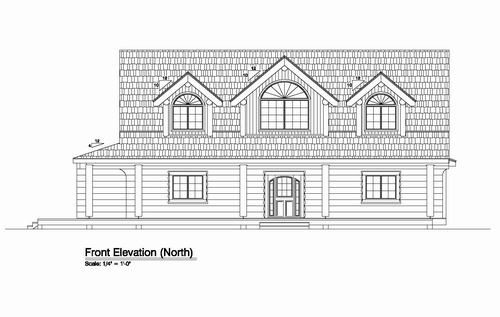

Click image to view other elevations and floor plans

The Navajo puts an elegant spin on a classic "Cape Cod" design. The main features of the house are the 3 front dormers, accompanied by an 8' covered porch on front and back. The rear porch also proudly displays a large, 22' wide log truss. The main floor level holds all amenities required and more, and the open loft leaves room to develop 2 or more bedrooms.

Click this image to view a .pdf file of the elevations and floor plans. They are set up to print on a 8 1/2" x 11" paper, in 1/8" = 1'-0" scale.

Pricing:

$1400.00 CDN - Includes 5 sets of the Standard Construction Set (see rates and services for details), free shipping, and 4 hours of revisions to the plans.

An upgrade to a Complete Construction Set may be be added on at time of order for an additional $.25 per square foot (Main and Upper living space, if applicable)

Extra prints and/or shipments may also be added on. Cost determined by quantity of prints and shipments.

As with all stock plans, you can make as many changes as you want/need. However, 4 hours of changes are included in the package price. Additional hours are charged at the current hourly rate (see rates and services for details). An estimate of the time required and extra cost will be provided.

Return to Chalet Stock Plans
